Accumulation & Sorting Turntable for storage, finishing and feeding of glass bottles to the production process

Brand Name : HF

Model Number : HF-L800

Certification : CE

Place of Origin : china

MOQ : 1 set

Price : USD1900/set FOBshanghai

Payment Terms : Western Union, L/C, T/T

Supply Ability : 50 sets /month

Delivery Time : 10-15 days

Packaging Details : export wooden case

Input power : 0.4KW

speed : 150BPM

material : SS304

Iinput voltage : 380/220V AC

Diameter of turning table : 800mm

Weight : 180KG

Contact Now

1.Accumulating Turntables Features :

botter sorter is an auxiliary device in the production line. It is mainly used for storage, finishing and feeding of glass bottles to the production process.

Performance characteristics:

• Made of cast aluminum and stainless steel, the performance mechanism is stable and reliable!

• Match production line host speed!

• The main disc diameter can be confirmed at the time of ordering

The sorter for bottle collection is a little different to that at the beginning at conveyor

2.parameters:

Turntable diameter: 0.8~1.2m (up to requirement)

Total power: 0.4kw

Running speed: adjustable

Steel material: ss304 steel

Model	L-800	L-900	L-1000	L-1100
diameter of turning table	800(mm)	900(mm)	1000(mm)	1100(mm)
capacity (cans/min)	20-40	30-60	40-80	60-120
overall dimension (mm)	12008001094	11509001094	123010001160	135011401160

Accumulation & Sorting Turntable for storage, finishing and feeding of glass bottles to the production process

3.packing for Accumulation & Sorting Turntable

Accumulation & Sorting Turntable for storage, finishing and feeding of glass bottles to the production process

contact information :

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.

Skype: alicehongjin

Tel: +86-0512-89571370

Mobile/WeChat :+86-15692118327

http://www.howfondpack.com

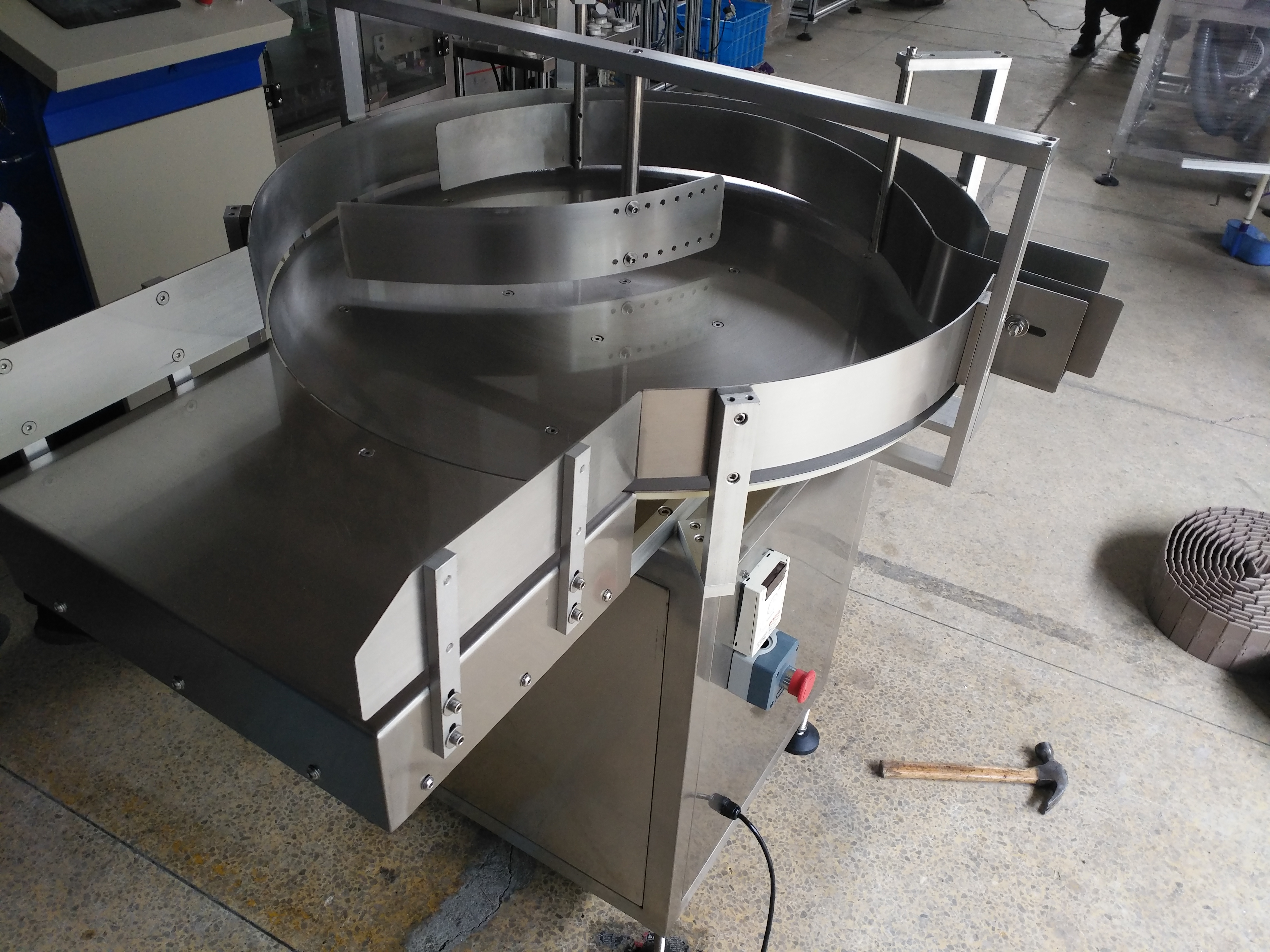

Accumulation & Sorting Turntable for storage, finishing and feeding of glass bottles to the production process Images
